Oil distribution parts for 1GM10 engine

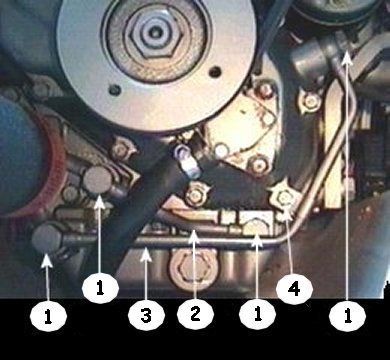

oil line
  1. Pipe joint
    • bolt 103854-39140
    • gasket (2) 23414-120000
    • ball joint 103854-39540
  2. oil line 128170-39010 short
  3. oil line 128170-39020 long
  4. retainer 105582-39140

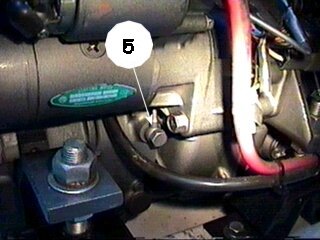

  5. Pipe joint at rear of engine (shown below)
    • bolt 101147-59810
    • packing (2) 23414-080000
    • ball joint 103288-39170
  6. oil line 128170-39200 between 5 & 5 (not shown)

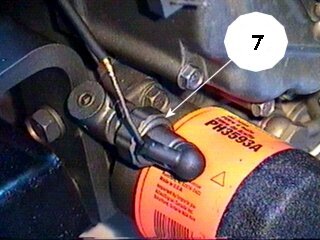

  7. oil pressure switch 124060-39452 (shown at bottom left)

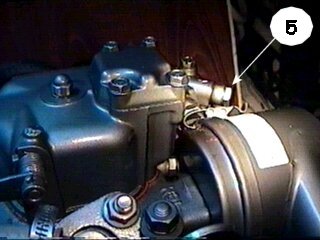

oil upper left oil lower right
oil pressure switch
